Modulador QAM IP com entrada IP multiprotocolo

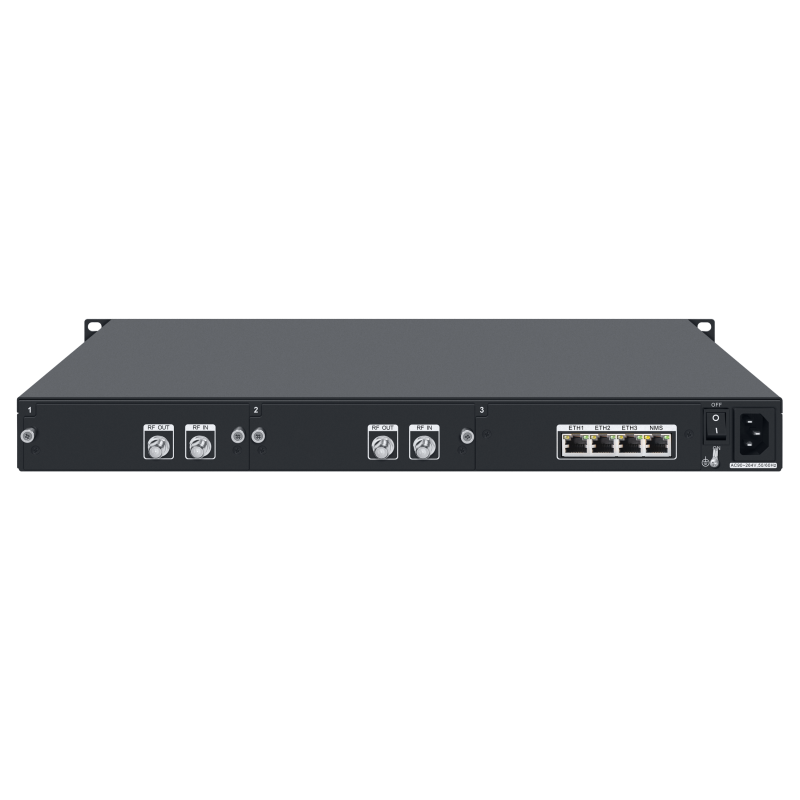

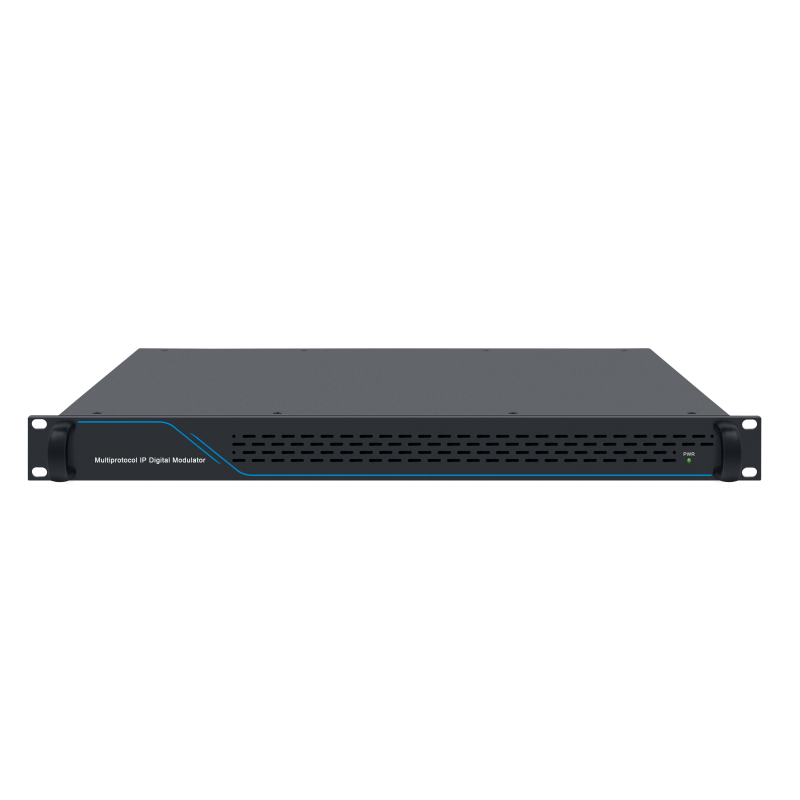

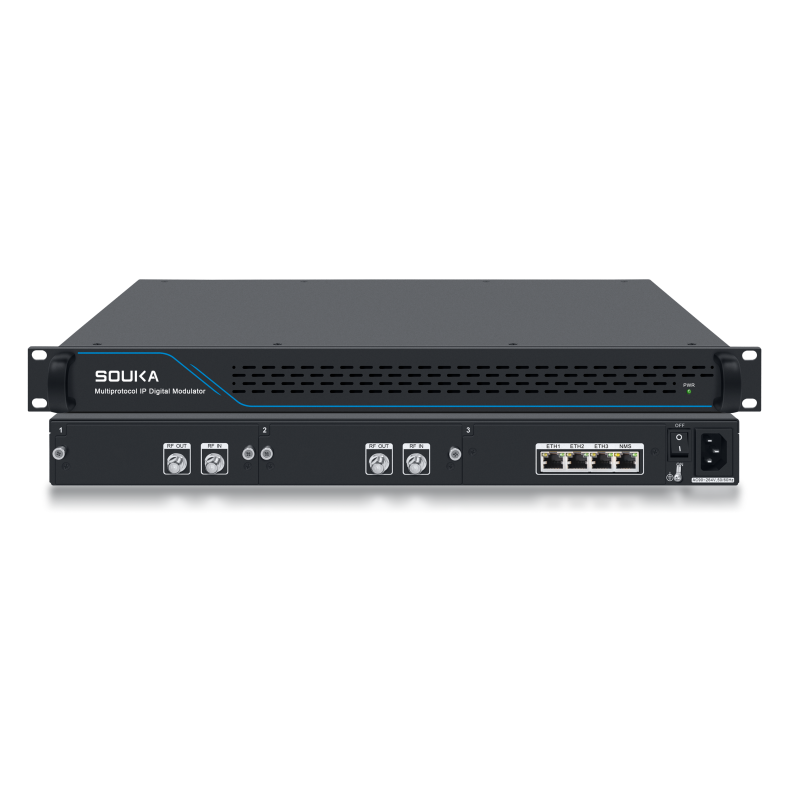

O SKD180X é um 1RU montagem em rack compacto headend permite que você receba o conteúdo de rede ip e modular os programas em canais de cabo digital para distribuição por coaxial.três hot-swappable modular permite que as operadoras escalem o serviço conforme a demanda aumenta. Este produto pode ajudar os operadores a implementação o serviço de vídeo pelo sistema de cabo existente com rapidez, eficiência e facilidade.

SKD1709 é um de alta densidade ip para plataforma rf analógica que transporta 32 quaisquer canais em um 2U caixa. interface de usuário baseada em navegador facilita a configuração e a manutenção Este pendentes headend sistema consome muito menos energia do que outros concorrentes, eventualmente, reduzem o custo operacional e estendem o ciclo de vida.

A série SKD210X é um modulador IP multicanal desenvolvido por nossa empresa. O produto suporta multiplexação e modulação de 2 sinais IP em 1 RF com 2 portadoras. Ele adota uma porta de entrada de loop de RF que é conveniente para os usuários misturar várias saídas SKD210X ou misturar com sinais de antena. É perfeito para hotéis, hospitais, entretenimento doméstico e monitoramento, também outros sistemas de headend de CATV digital.

O SKD710X é o modulador IP para RF de segunda geração da SOUKA, que suporta entradas IP MPTS e SPTS com os protocolos UDP e RTP. Este modulador vem com uma porta de entrada Gigabit IP e emite frequências RF em 4 ou 8. É extremamente fácil de usar graças à interface WEB intuitiva integrada.

O SKD7170 é um dispositivo que permite a convers、o de sinais DVB-T/T2 e DVB-C em fluxos IP através do protocolo UDP ou RTP. Os fluxos IP convertidos podem ser multicast ou unicast, permitindo a distribuiç、o de conteúdo de TV através de redes IP. Este dispositivo vem com interfaces amigáveis ​​de gerenciamento e controle para que os usuários definam as configurações facilmente.

SKD717X Digital Headend 4/8 FTA Signals to RF Modulator with DVB-C/T/T2 input Features: 1. A single device supports up to 2 cards. 2. Support 4-8 channels, DVB-C(J83A)/DVB-T/T2 input. 3. Support UDP/RTP protocol input, support SPTS/MPTS stream processing. 4. Support 256 IP addresses, Gigabit input. 5. Supports PID remapping, PSI/SI information editing and insertion. 6. Supports digital modulation output of 4/8 frequency points, and the output supports DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (optional). 7. 1 Gigabit port and 1 management port. 8. Operated through PC (WEB), the device supports cloud management. Specifications: SKD717X Base unit parameter Size 318(L)*260(W)*44(H)mm Installation 1U19 inch rack、wall-mounted, desktop Working temperature, humidity -10℃-45℃、40%-70% Storage temperature and humidity -40℃-70℃、40%-95% Power Supply voltage DC12V Maximum current 7000mA Module input port Cards 2 Module for each card 1 air signal(DVB-C(J83A)/DVB-T/T2) port and 1 test port IP Input IP input port 1 Gigabit RJ45 network port Input format Support UDP/RTP protocols input,support SPTS/MPTS stream processing，support 256 IP address RF output Output port    F female connector，1 RF output and 1 -20dB test port output Output standard DVBC(J83A/B/C),DVBT/T2,DTMB,ISDB-T,ATSC(optional) RF frequency range 50-870MHz minimum step 1MHz Output level ≥105dBuV（0-20dB Adjust range，step 0.5dB） Out band rejection ≥60dB Output impedance 75Ω Output frequencies 4/8 frequencies（optional） Modulation parameter J.83A/C Standard Annex A/C Frequencies 4 8 Constellation 16QAM、32QAM、64 QAM、128 QAM、256 QAM MER ≥36dB Symbol rate 3.600~6.960Msps Output frequency range( adjustable) 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB Out band rejection ≥60dB Output impedance 75Ω DTMB Standard GB20600-2006 Frequencies 4 8 Constellation QPSK, QAM16, QAM64, QAM4_NR, QAM32 FFT Single carrier, multi-carrier Sync Frame 420, 595 and 945 Code Rate  0.4, 0.6, 0.8 Interweaving depth None、240、720 MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω ISDB-T Standard ANSI/SCTE 2001-B004 Frequency 4 8 Constellation QAM4, QAM16, QAM64 FFT 2K、4K、8K Guard interval 1/4，1/8，1/16，1/32 Code Rate 1/2 ,2/3,3/4,5/6 ,7/8 Interweaving depth None，2k，4k，8k Bandwidth 6MHz MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω DVB-T Standard ETS 300 744 Frequency 4 8 Constellation QAM4, QAM16, QAM64 FFT 2K、4K、8K Guard interval 1/4，1/8，1/16，1/32 Code Rate 1/2 ,2/3,3/4,5/6 ,7/8 Interweaving depth None，2k，4k，8k Bandwidth 6MHz，7MHz，8MHz， MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω DVB-T2 Standard EN 302 755 Frequencies 4 8 Constellation QAM4, QAM16, QAM64,QAM256 FFT 2K、2K、4K、8K、16K Guard interval 1/4，1/8，1/16，1/32 Code Rate 1/2 ,2/3,3/4,5/6 ,7/8 Interweaving depth Support all 3 Time Interleave options without sub-slicing and no frame jump. Bandwidth 1.7，6，7，8，10MHz MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω ATSC Standard 8VSB Frequencies 4 8 Bandwidth 6MHz MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω J.83B Standard Annex B Frequencies 4 8 Constellation 64 QAM、256 QAM Symbol rate 5.05641 MS/s(64 QAM)，5.360537 MS/s（256 QAM） MER ≥36dB Output frequency adjustment range 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω

Este SKD83 decodificador de ipé um conversor de tv em rede caixa desenhada por SOUKA para hotéis ' TVs, que podem personalizar o multi-idioma fundo de publicidade e LOGO, envio de publicidade e legendas e os pontos de acesso wi-fi

SKD715X Digital TV Headend Tuner to RF Transmodulator with DVBS/S2 Input Features: 1. A single device supports up to 2 cards. 2. Support 4-8 channels, DVBS-S2 input. 3. Support UDP/RTP protocol input, support SPTS/MPTS stream processing. 4. Support 256 IP addresses, Gigabit input. 5. Supports PID remapping, PSI/SI information editing and insertion. 6. Supports digital modulation output of 4/8 frequencies, and the output modulation supports DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (optional). 7. 1 Gigabit port and 1 management port. 8. Operated through PC (WEB), the device supports cloud service. Specifications: SKD715X Base unit parameter Size 318(L)*260(W)*44(H)mm Installation 1U19 inch rack、wall-mounted, desktop Working temperature, humidity -10℃-45℃、40%-70% Storage temperature and humidity -40℃-70℃、40%-95% Power Supply voltage DC12V Maximum current 7000mA Module input port Cards 2 Module for each card 4 tuner input card IP Input IP input port 1 Gigabit RJ45 network port Input format Support UDP/RTP protocols input,support SPTS/MPTS stream processing，support 256 IP address RF output Output port    F female connector，1 RF output and 1 -20dB test port output Output standard DVBC(J83A/B/C),DVBT/T2,DTMB,ISDB-T,ATSC(optional) RF frequency range 50-870MHz minimum step 1MHz Output level ≥105dBuV（0-20dB Adjust range，step 0.5dB） Out band rejection ≥60dB Output impedance 75Ω Output frequencies 4/8 frequencies（optional） Modulation parameter J.83A/C Standard Annex A/C Frequencies 4 8 Constellation 16QAM、32QAM、64 QAM、128 QAM、256 QAM MER ≥36dB Symbol rate 3.600~6.960Msps Output frequency range( adjustable) 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB Out band rejection ≥60dB Output impedance 75Ω DTMB Standard GB20600-2006 Frequencies 4 8 Constellation QPSK, QAM16, QAM64, QAM4_NR, QAM32 FFT Single carrier, multi-carrier Sync Frame 420, 595 and 945 Code Rate  0.4, 0.6, 0.8 Interweaving depth None、240、720 MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω ISDB-T Standard ANSI/SCTE 2001-B004 Frequency 4 8 Constellation QAM4, QAM16, QAM64 FFT 2K、4K、8K Guard interval 1/4，1/8，1/16，1/32 Code Rate 1/2 ,2/3,3/4,5/6 ,7/8 Interweaving depth None，2k，4k，8k Bandwidth 6MHz MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω DVB-T Standard ETS 300 744 Frequency 4 8 Constellation QAM4, QAM16, QAM64 FFT 2K、4K、8K Guard interval 1/4，1/8，1/16，1/32 Code Rate 1/2 ,2/3,3/4,5/6 ,7/8 Interweaving depth None，2k，4k，8k Bandwidth 6MHz，7MHz，8MHz， MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω DVB-T2 Standard EN 302 755 Frequencies 4 8 Constellation QAM4, QAM16, QAM64,QAM256 FFT 2K、2K、4K、8K、16K Guard interval 1/4，1/8，1/16，1/32 Code Rate 1/2 ,2/3,3/4,5/6 ,7/8 Interweaving depth Support all 3 Time Interleave options without sub-slicing and no frame jump. Bandwidth 1.7，6，7，8，10MHz MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω ATSC Standard 8VSB Frequencies 4 8 Bandwidth 6MHz MER ≥36dB Output frequency 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω J.83B Standard Annex B Frequencies 4 8 Constellation 64 QAM、256 QAM Symbol rate 5.05641 MS/s(64 QAM)，5.360537 MS/s（256 QAM） MER ≥36dB Output frequency adjustment range 50-999.999MHz，minimum step 0.001MHz Output level 110dBuV±3dB Output level adjustment range 0～-20dB With out band rejection ≥60dB Output impedance 75Ω
